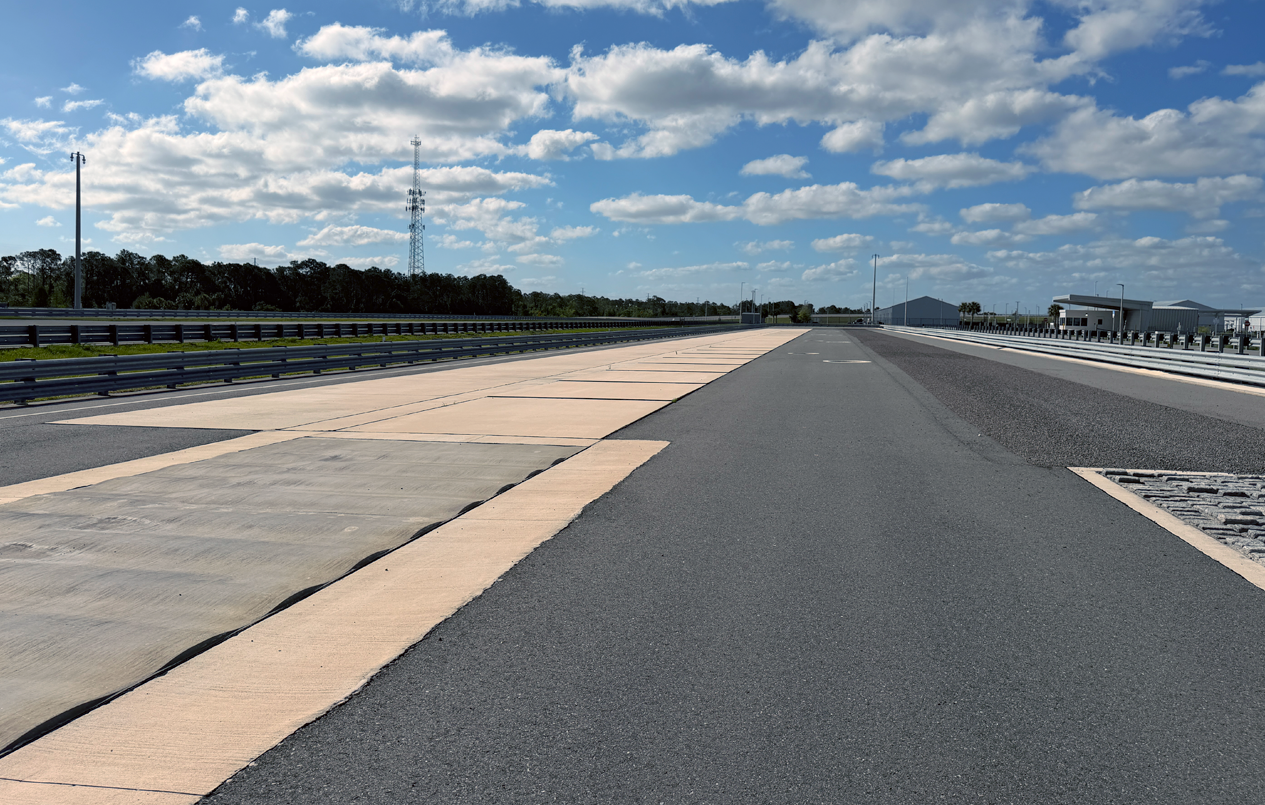

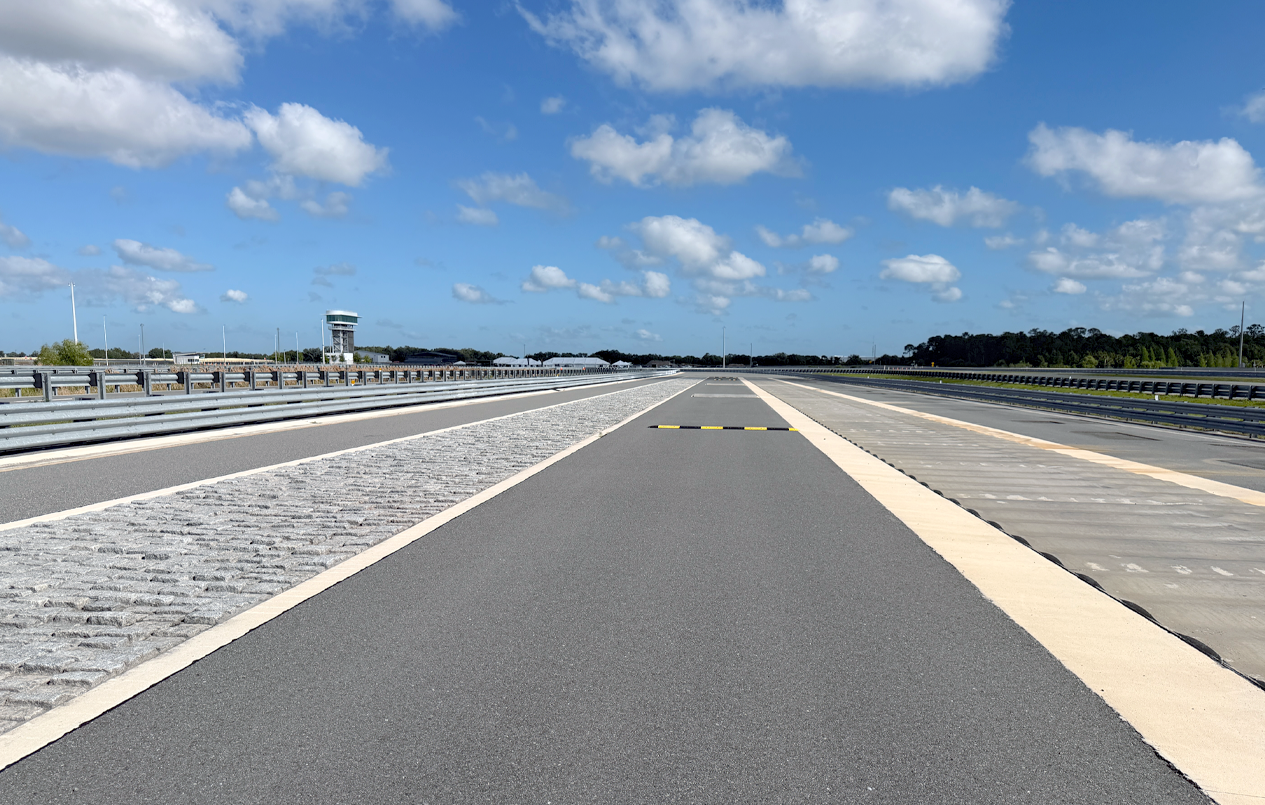

The Noise, Vibration, and Harshness Sector, a collection of eight unique surfaces in one restricted area, is in the central-east portion of the complex and provides a secure location to test vehicle sensors’ exposure to noise, vibrations, and surface harshness. Supporting up to three users simultaneously, this area can be segmented into three smaller test spaces to provide maximum flexibility and efficiency.

In addition to the various surfaces is the adjacent External Noise Track, which consists of a two-lane straightaway with a loop at either end for continuous circulation. The interior of the northern loop is fully paved to test lateral force application and braking scenarios and can support up to six vehicles and ten users simultaneously, depending on the testing scenario.

Technical Specifications

Overall Sector Dimensions

Total Sector Area 97,918 ft2 (9,9096 m2)
Total Asphalt Area 51,166 ft2 (4,753.50 m2)
Total Area with Special Surfaces (4 Lanes) 46,752 ft2 (4,343.40 m2)
Radius of Turning Area (2 Lanes) 24 ft (7.30 m)

Lane 1 - Rough Asphalt

Width
Length 500 ft (152.40 m)
Minimum Wheelpath 6.50 ft (2 m)
Maximum Wheelpath 30 ft (9.15 m)

Lane 2 - Belgian Block

Width 11.5 ft (3.50 m)
Length 500 ft (152.40 m)
Block Variance ±1.50 in. (±3.80 cm)

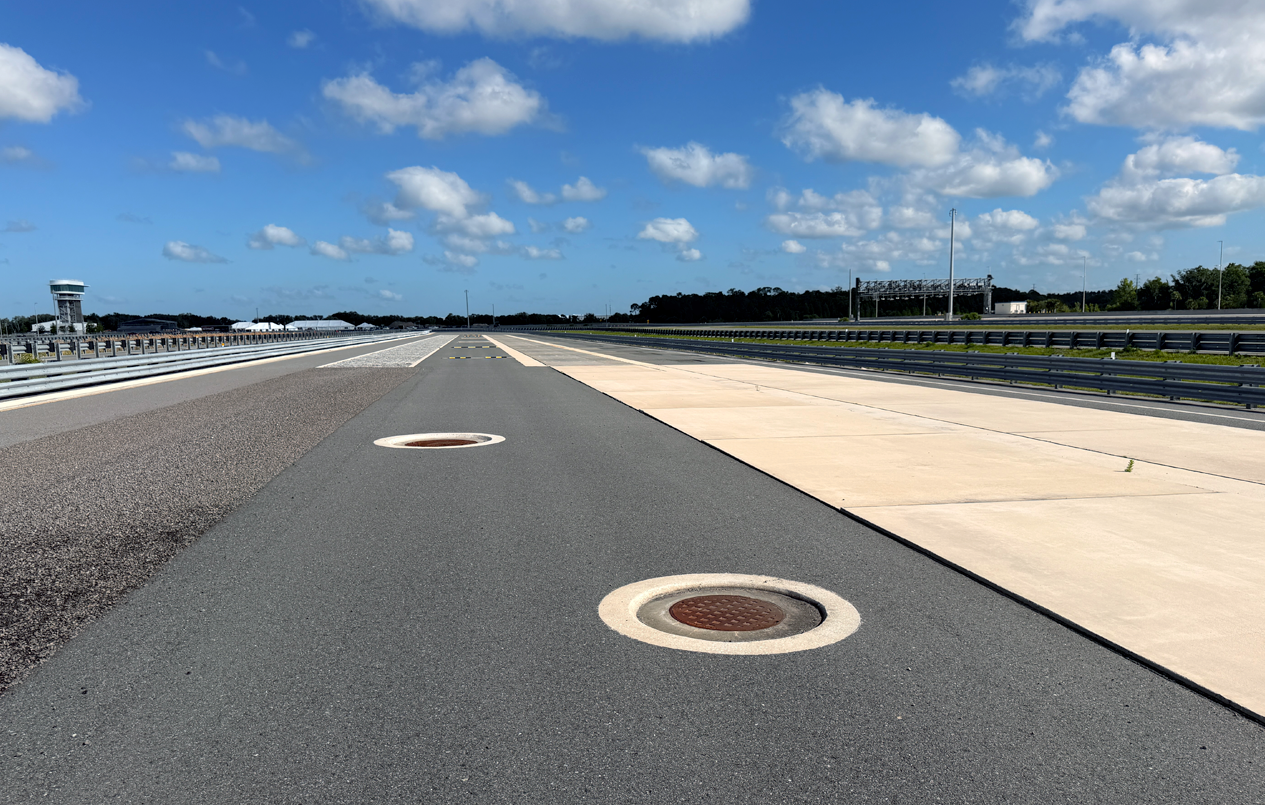

Lane 3 - Manhole Cover

Width 11.5 ft (3.50 m)
Length 500 ft (152.40 m)
Manhole Covers 8 - 24
Depression Variance 1.0 - 2.0 in. (2.54 - 5.08 cm)

Lane 4 - Speed Bump

Width 11.5 ft (3.50 m)
Length 500 ft (152.40 m)
Type 1 Bump Length - Typical 10 ft (3 m)
Type 1 Bump Height - Typical 4 in. (10.16 cm)
Type 2 Bump Length - Trapezoidal 14 in. (35.56 cm)
Type 2 Bump Height - Trapezoidal 2 in. (5.08 cm)
Type 3 Bump Length - Rounded 15 in. (38.10 cm)
Type 3 Bump Height - Rounded 2 in. (5.08 cm)

Lane 5 - Step up Step Down

Width 11.5 ft (3.50 m)
Length 500 ft (152.40 m)
Flat Approach Slab Length 17.5 ft (5.30 m)
Step Up 1 and Step Down 1 Height .375 in. (0.95 cm)
Step Up 1 and Step Down 1 Length 105 ft (32 m)
Flat Transition 1, 2, and 3 Length 15 ft (4.57 m)
Step Up 2 and Step Down 2 Height 0.75 in. (1.90 cm)
Step Up 2 and Step Down 2 Length 105 ft (32 m)

Lane 6 - Sine Wave

Width 11.5 ft (3.50 m)
Length 500 ft (152.40 m)
Sine Amplitude 1.5
Sine Wavelength 2.5 ft (0.76 m)
Wheelpaths 4
Out of Phase Wheelpath One off by 0.50 x Wavelength

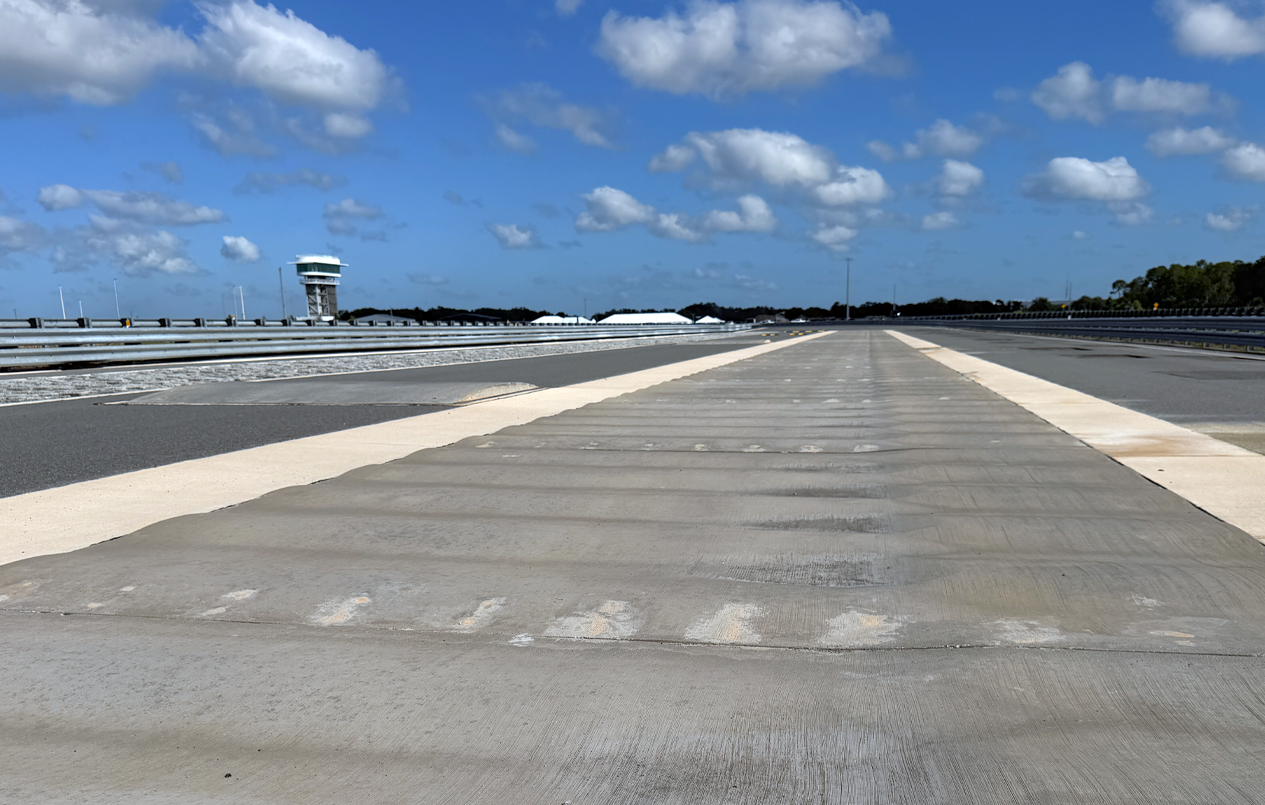

Lane 7 - Freeway Concrete

Width 11.5 ft (3.50 m)
Length 500 ft (152.40 m)
Flat Approach Slab Length 17.5 ft (5.33 m)
Transition Slab 1 Length 15 ft (4.57 m)
Curled/Warped Slab Length 435 ft (132.58 m)
Transition Slab 2 Length 15 ft (4.57 m)

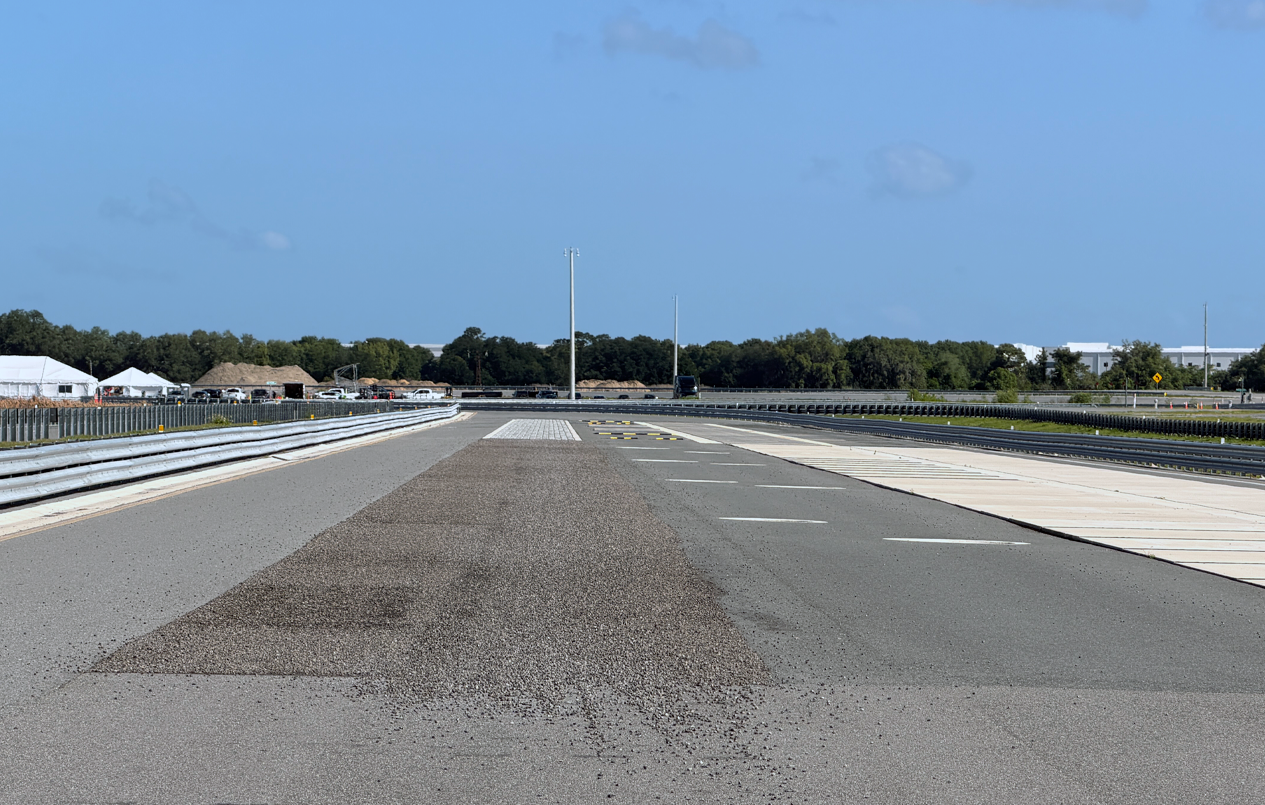

Lane 8 - Damaged Asphalt

Width 11.5 ft (3.50 m)
Length 500 ft (152.40 m)
Patched Damage 44 Random Patches
Patch Lenght Variance 1 - 12 ft (0.30 - 3.65 m)
Patch Height Variance (Relative to Surrounding Pavement) -1.5 - ±0.4 in. (-3.81 - ±0.15 cm)

External Noise Track

Drive Lane Width 24 ft (7.30 m)
Drive Lane Length 131.25 ft (40 m)
Total Length of Straightaway (East) 1,701 ft (518.50 m)
Length of Straightaway (West) 2,234 ft (680.90 m)
Length of Straightaway (Central) 1,991 ft (606.90 m)
Length of Loop (South) 127 ft (38.70 m)
Length of Loop (North) 311 ft (94.80 m)
