Geometry Track
Complex Course Configuration

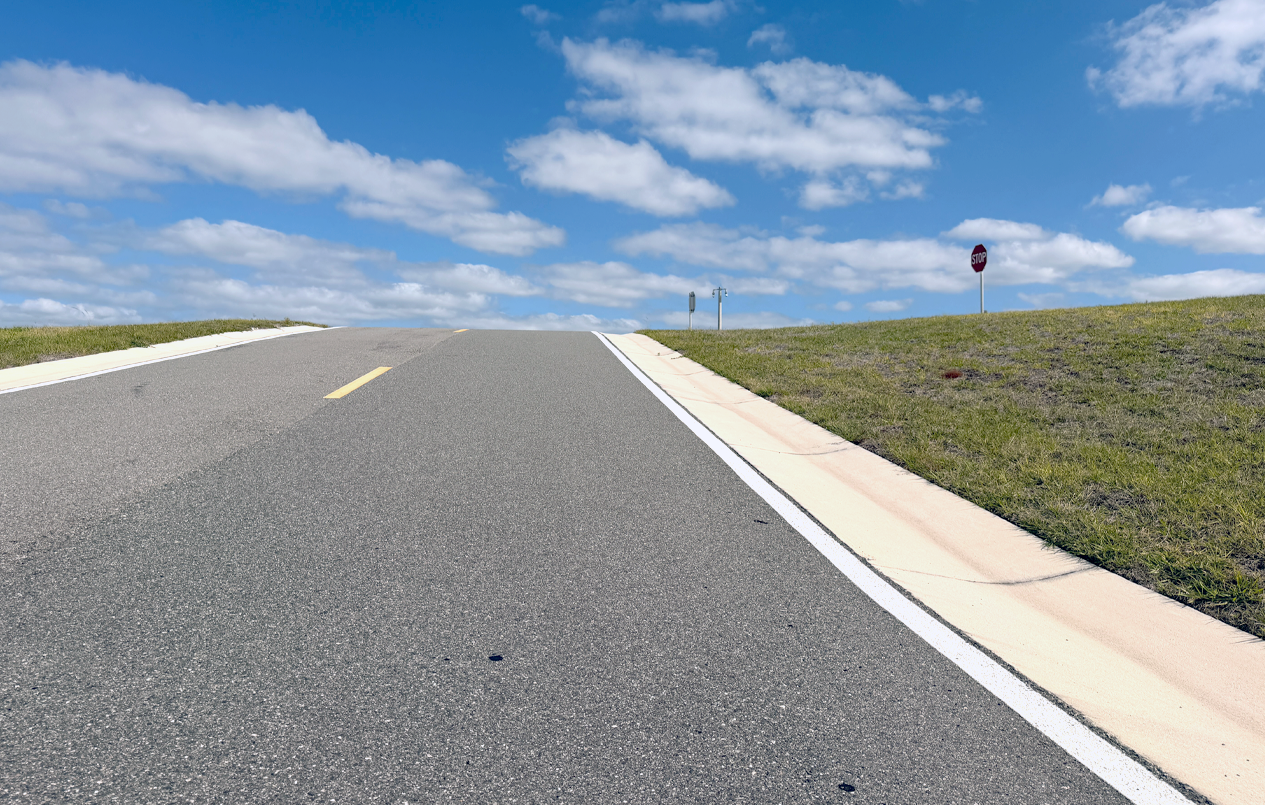

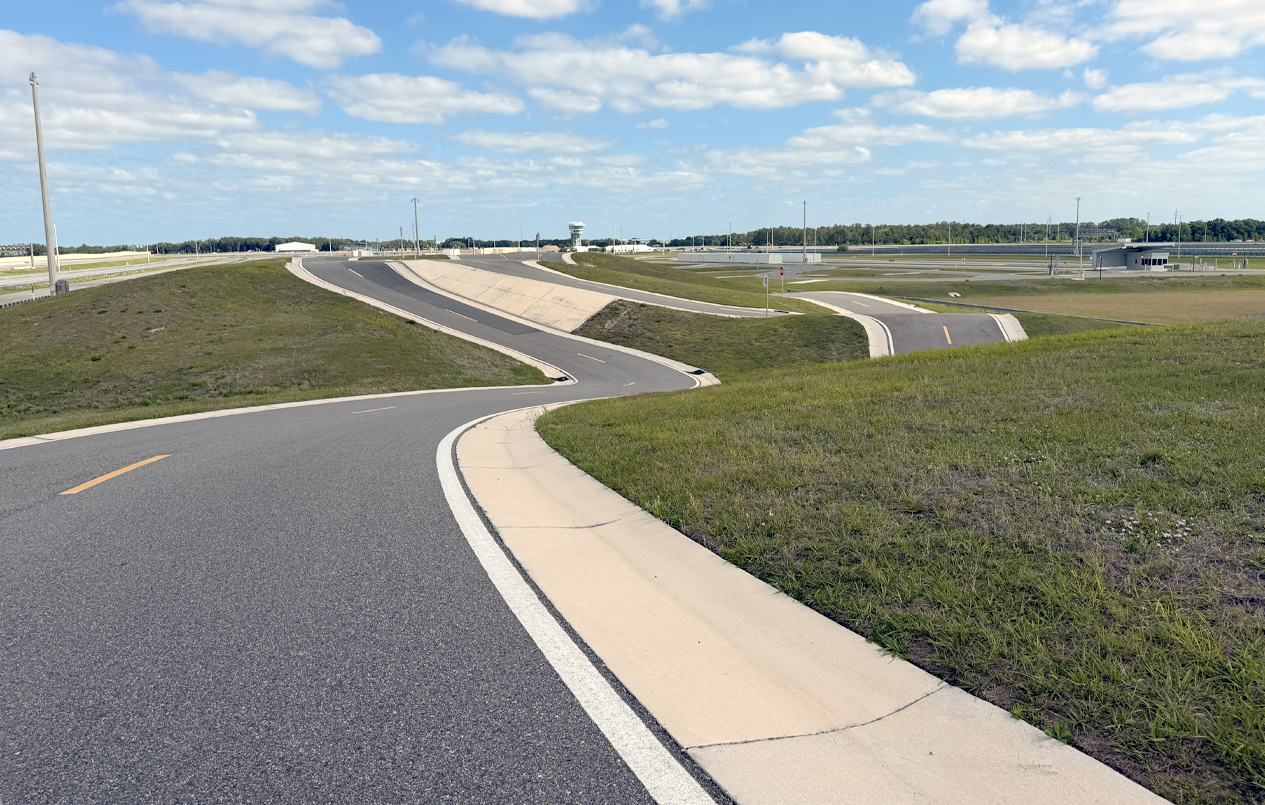

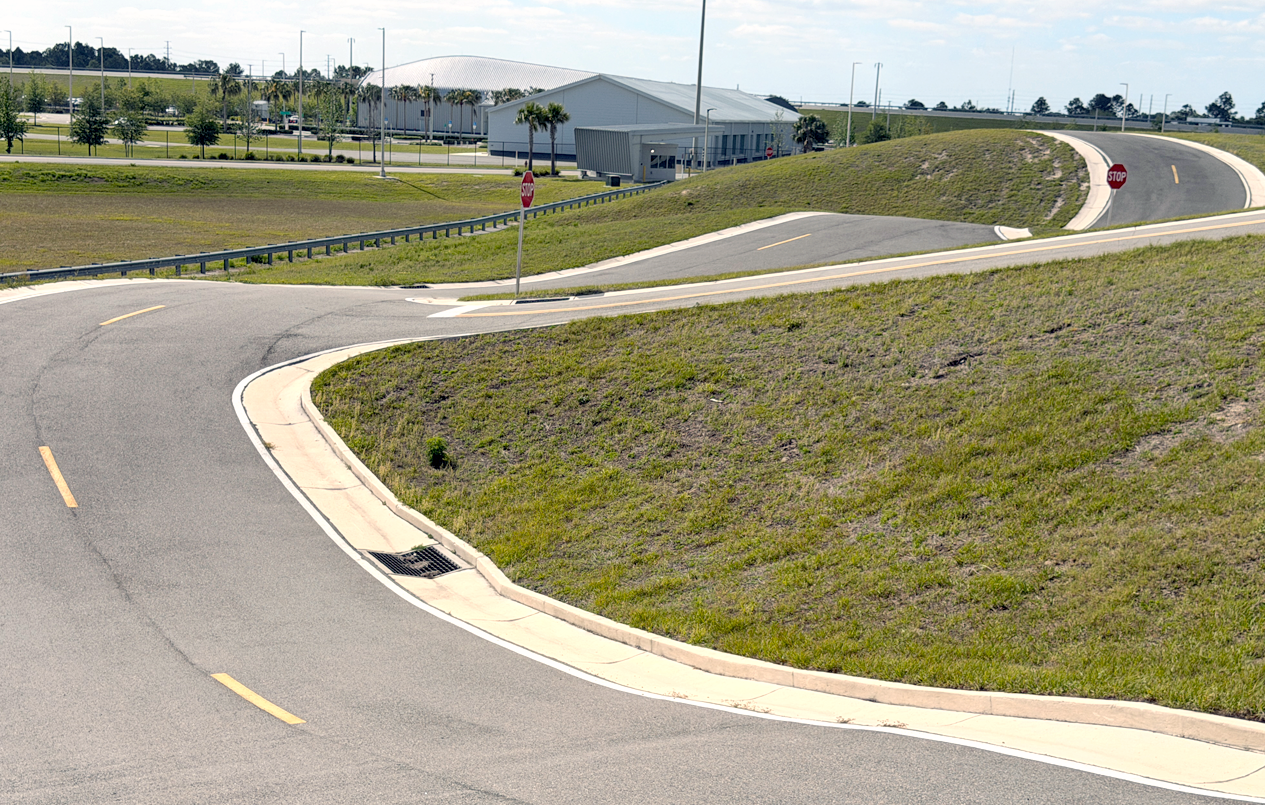

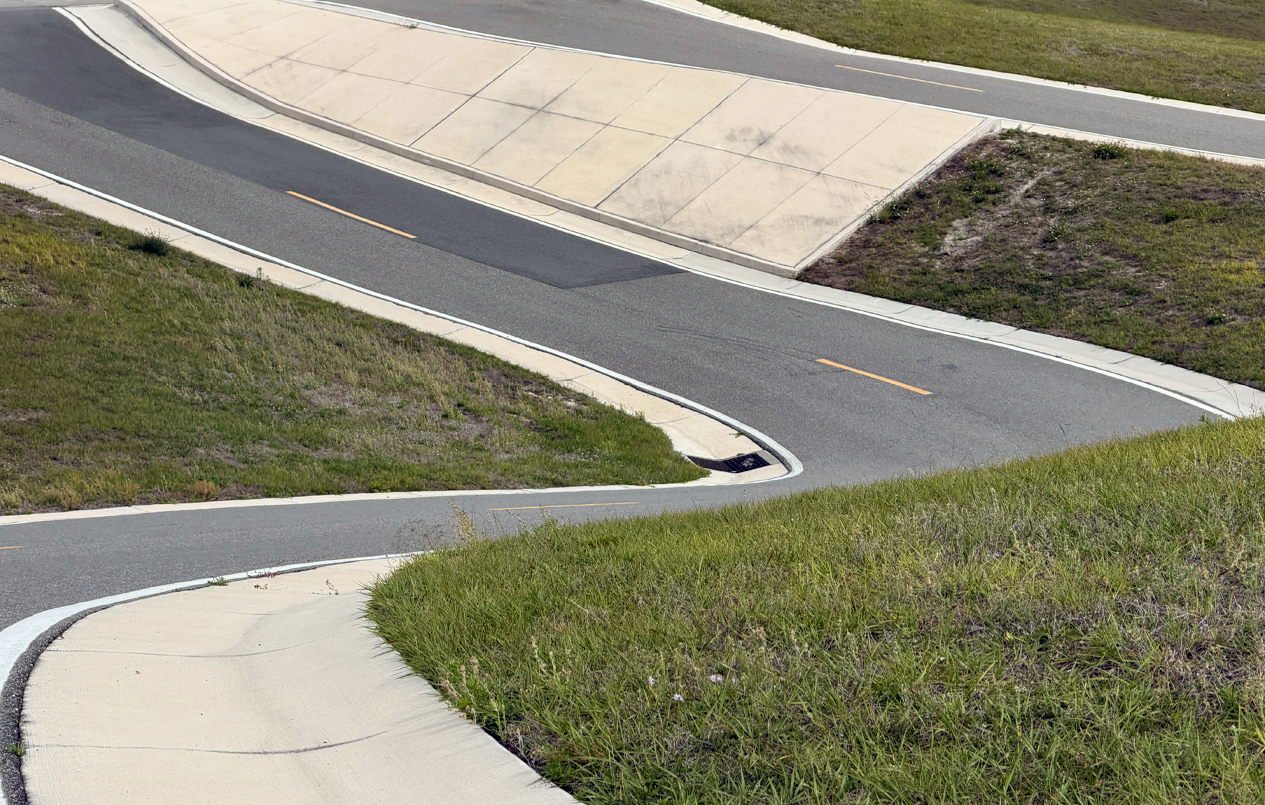

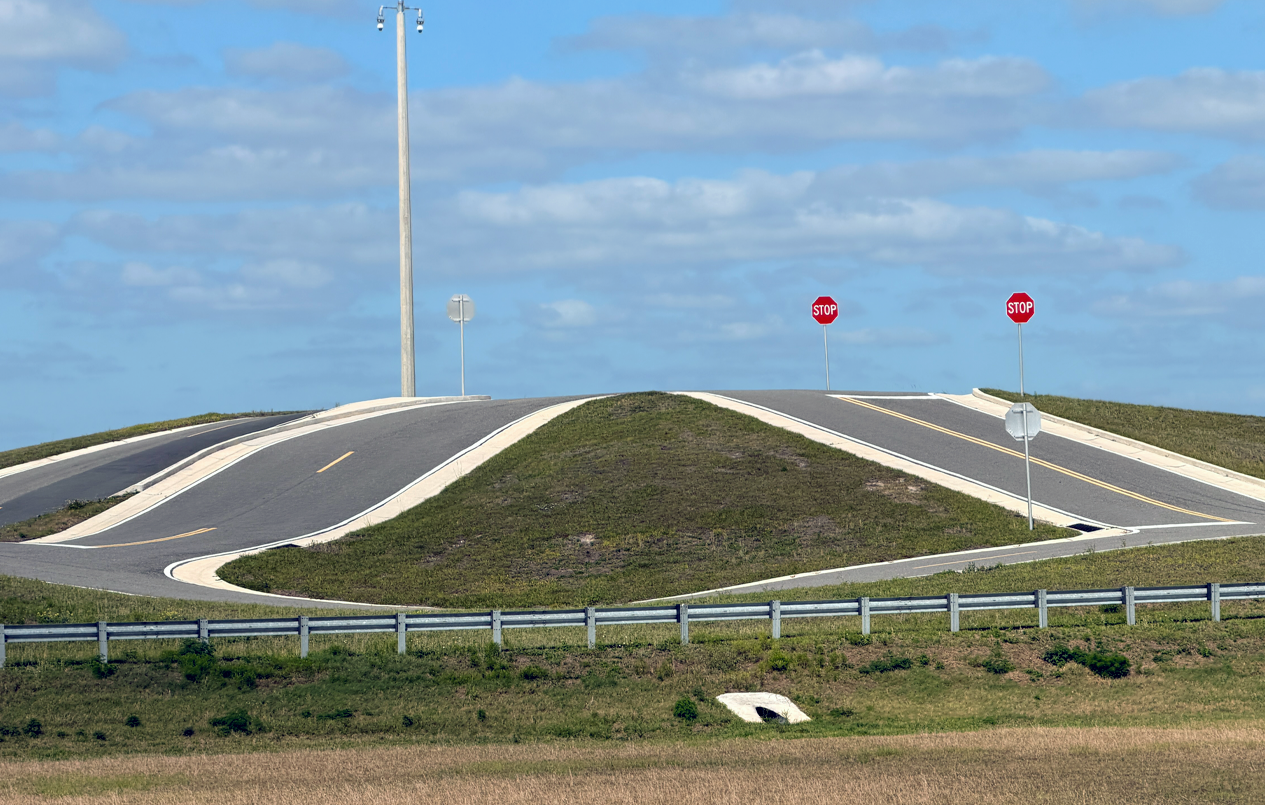

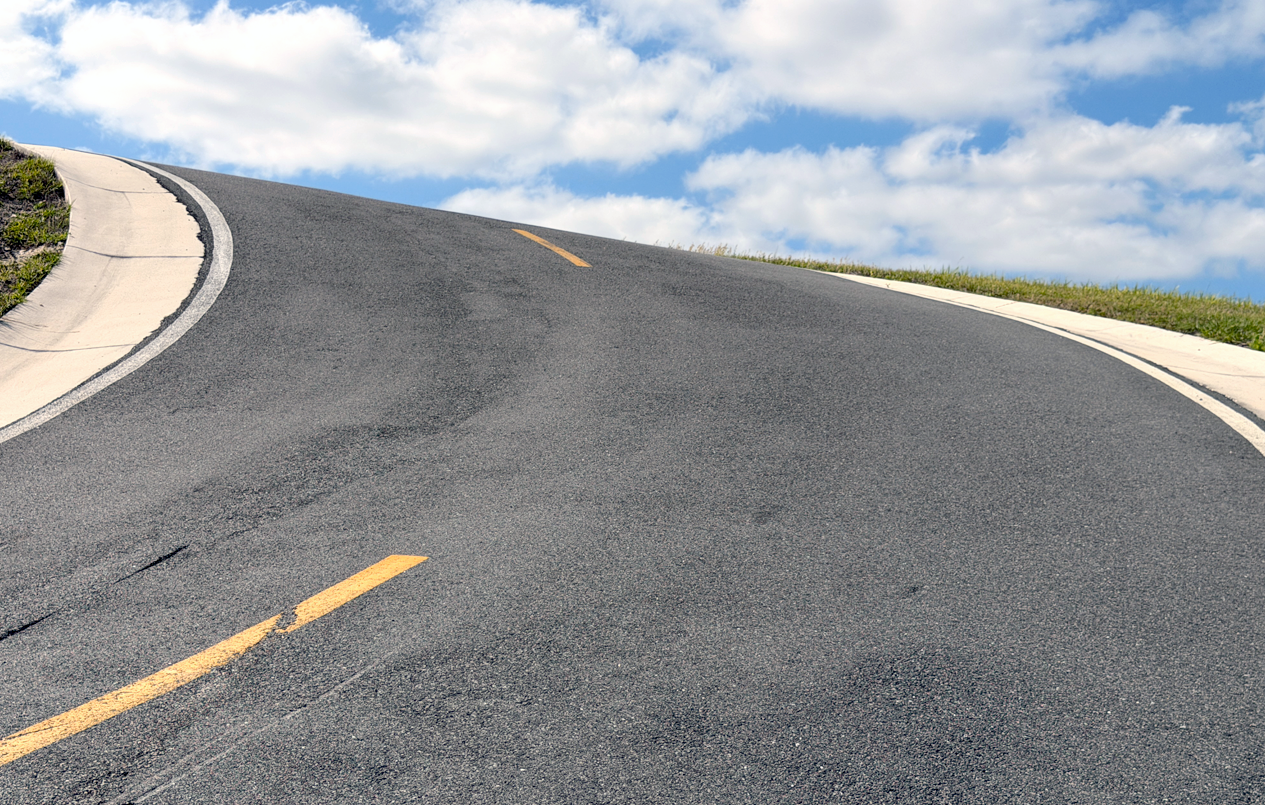

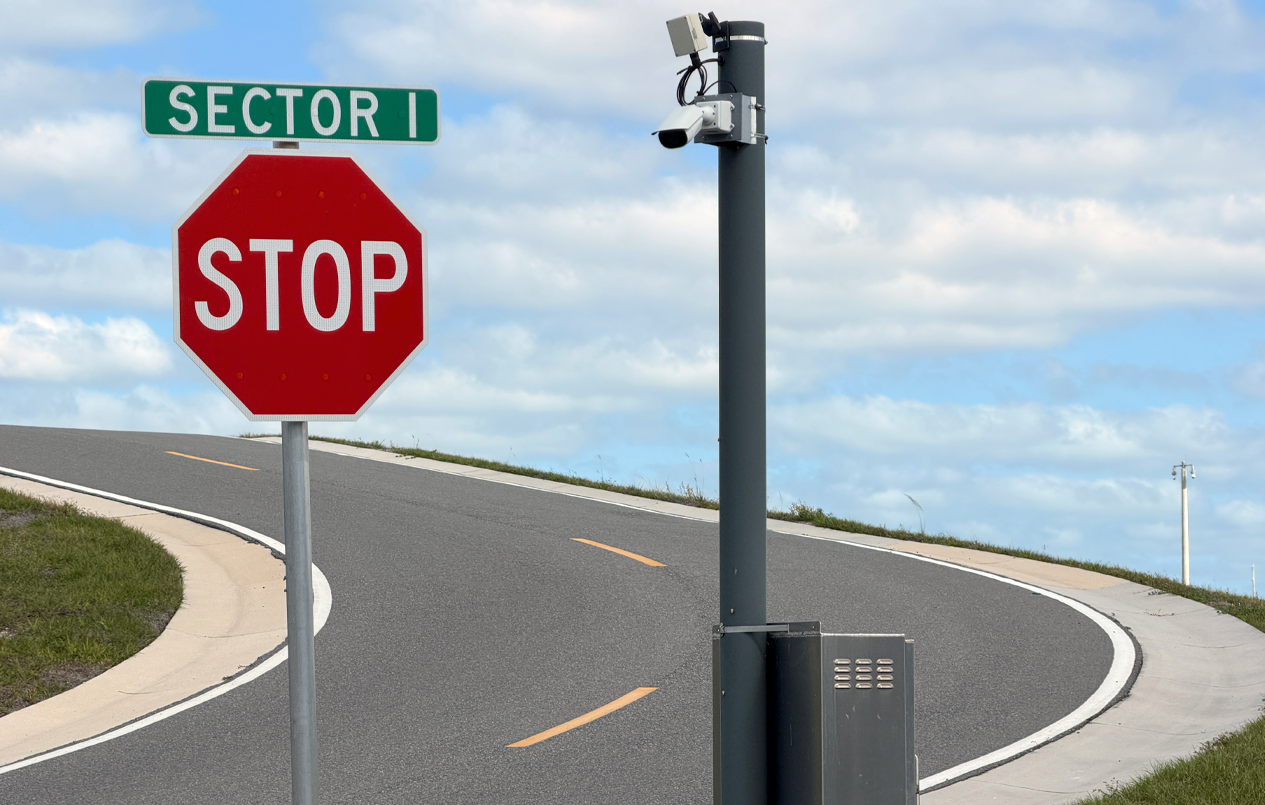

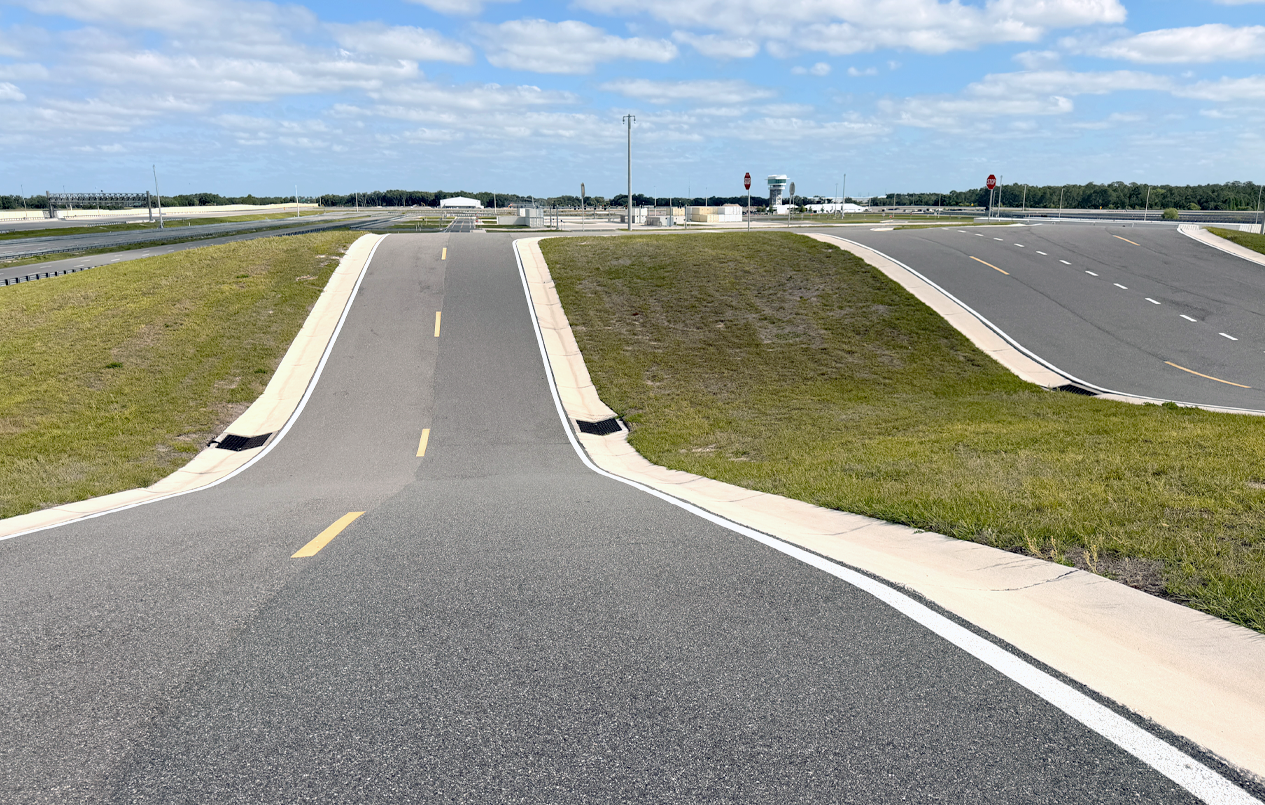

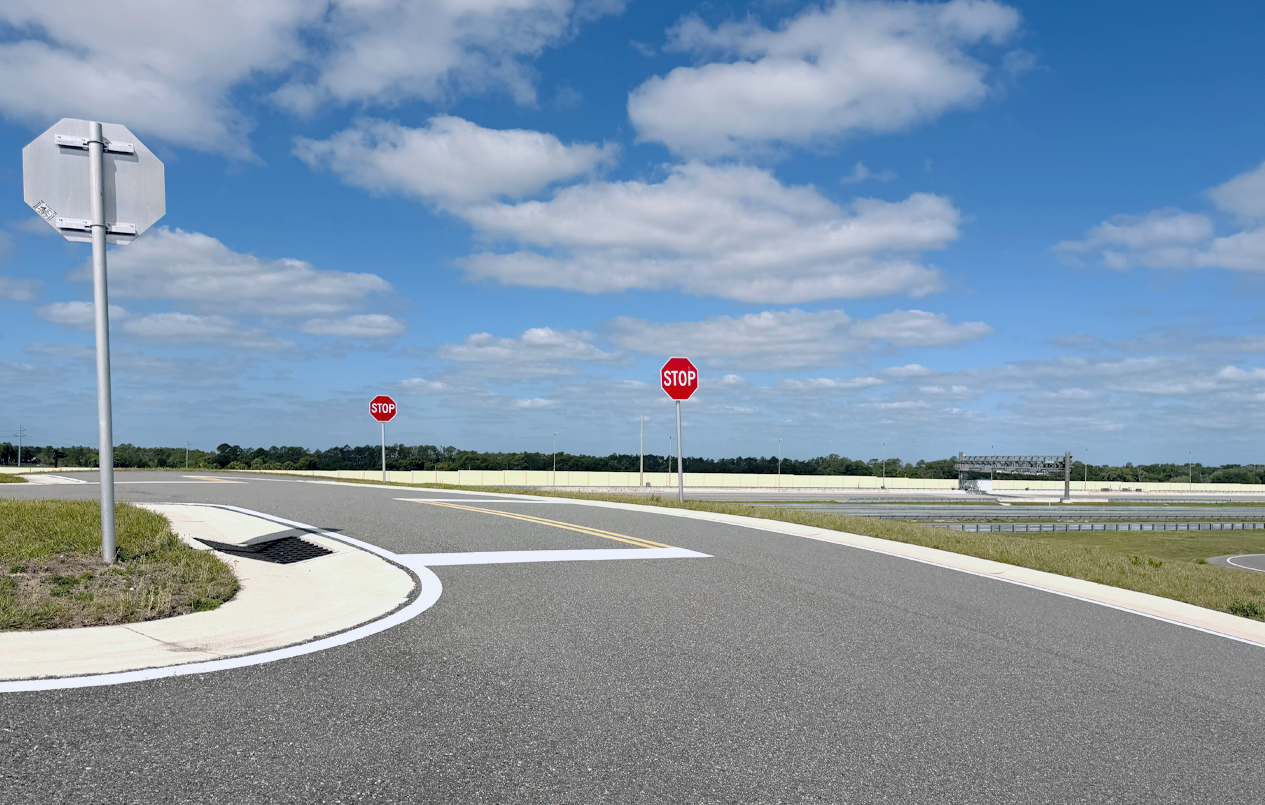

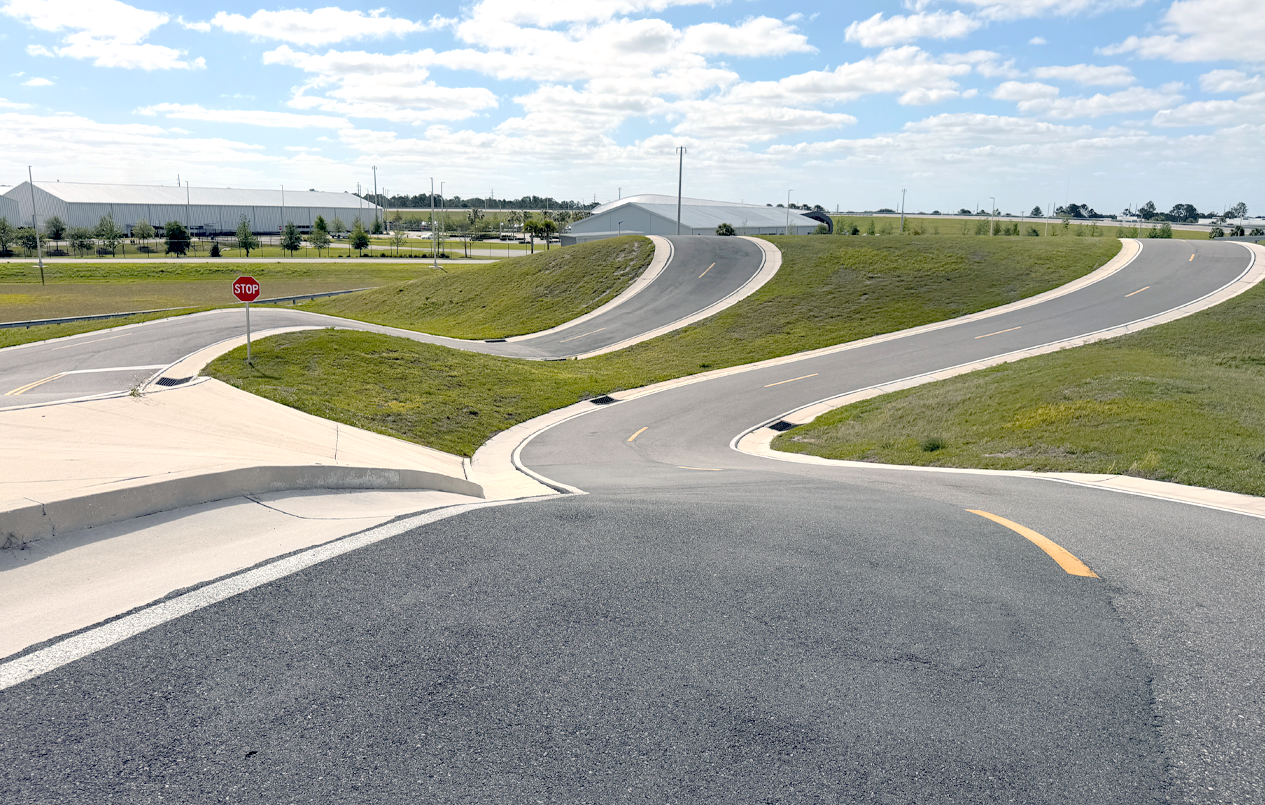

The Geometry Track features a series of tight, two-lane/two-way streets for testing low-speed traffic. This sophisticated platform delivers unparalleled conditions to test and develop innovative transportation solutions in today’s highly progressive market. Tight course conditions test the subtleties and nuances associated with handling, guidance, skid resistance, and vertical maneuverability. Located in the west-central portion of the facility, the undulating topography with complex curves and irregular grade changes provides a distinct environment to test critical function, limited-sight conditions in connected and autonomous vehicles.
Technical Specifications
Dimensions
Total Pavement Area
55,900 ft² (5,193.30 m²)
Pavement Width (2 Lanes)
24 ft (7.30 m)
Length (Loop Road) (2 Lanes)
1,878 ft (572.40 m)
Total Length (All Roads) (2 Lanes)
2,705 ft (824.50 m)
Max Downgrade
26.37%
Max Upgrade
28.90%
Maximum Height
20 ft (6.10 m)
